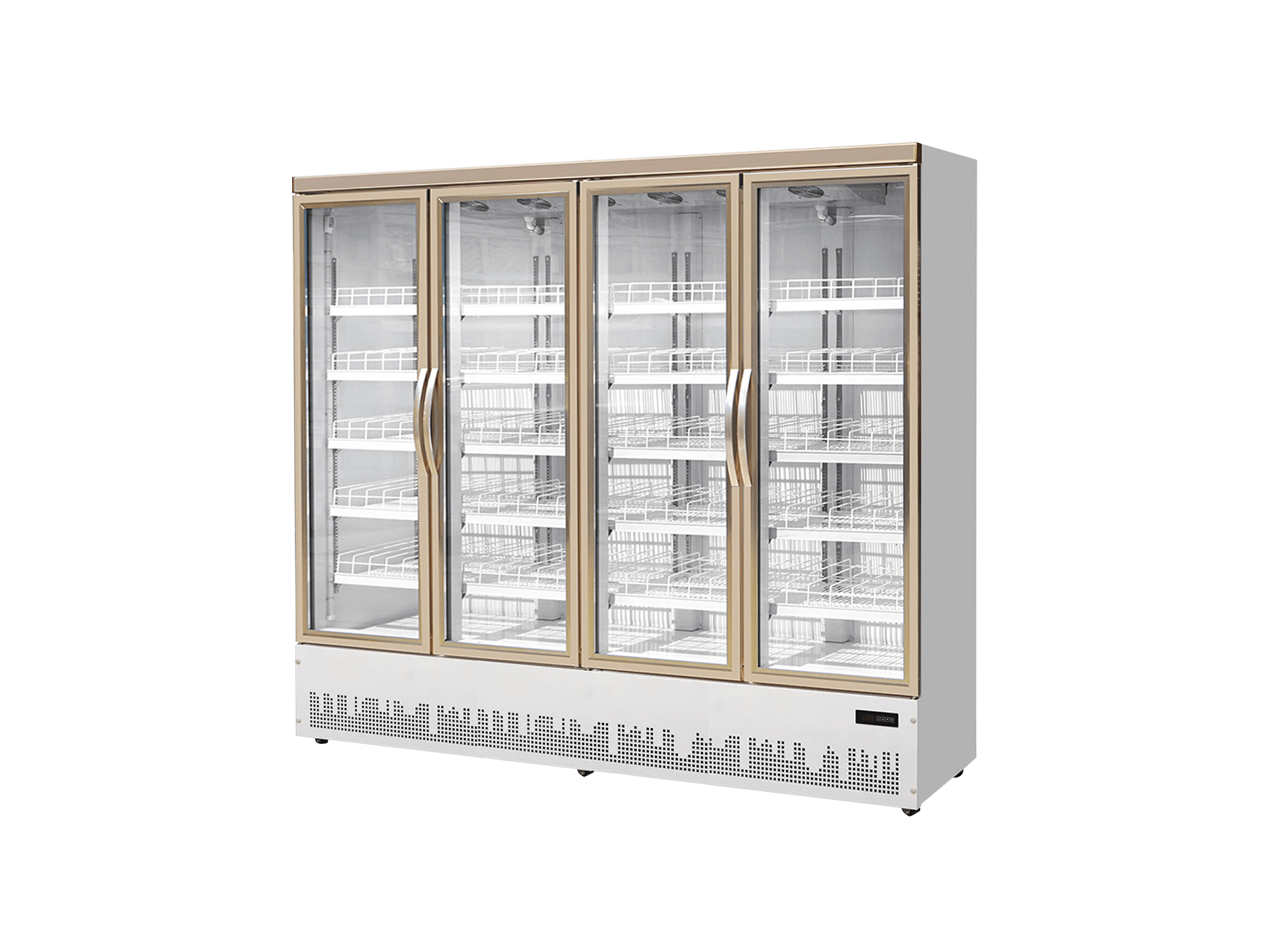

Bottom-Mount Gold Finish Display Fridge for Branded Interiors

Model: ARBG

External Size:
Temperature Type:

Core Features:

  • Elegant Design: Features a luxurious gold frame and white body that adds a touch of sophistication to any retail environment.
  • Flexible Configuration: Available in 2, 3, or 4-door options to suit spaces of varying sizes and storage requirements.
  • Superior Cooling: Advanced air-cooling system provides uniform temperature and frost-free operation for optimal product preservation.
  • Optimized Capacity: The bottom-mount compressor design maximizes internal shelf space, allowing for greater product display density.

Response within 2 hours - Worldwide Shipping - Factory Direct

Technical Specifications

External Dimensions & Electrical Parameters
External dimensions (mm) Temperature range Power supply Rated power Power consumption
1200*685*2100 2-8℃ 220V/50HZ 310W 7.4 Kw.H/24h
1800*685*2100 2-8℃ 220V/50HZ 470W 11.3 Kw.H/24h
2400*685*2100 2-8℃ 220V/50HZ 670W 16 Kw.H/24h
Net Weight & Refrigeration Parameters
Net Weight Effective Volume Refrigerant Refrigeration Method
120Kg 884L R290 Air-Cooled
165Kg 1357L R290 Air-Cooled
225Kg 1831L R290 Air-Cooled
Type & Structure Parameters
Type Climate Type Inner Liner Size Number Of Shelves
ARBG-2 N-Type 1120*510*1645 10 Shelves + 10 Dividers
ARBG-3 N-Type 1720*510*1645 15 Shelves + 15 Dividers
ARBG-4 N-Type 2320*510*1645 20 Shelves + 20 Dividers

Product Description

Product Overview

So the cabinet colour is part of the design brief, and brand-led retail or hospitality projects may choose a gold cabinet finish on a bottom-mount cabinet layout, so this bottom-mount premium gold display fridge offers that finish alongside a glass door and a bottom-mounted compressor layout that leaves the cabinet top free for signage or brand panels. The unit can suit projects where cabinet colour is part of the design brief. Procurement teams get a consistent commercial chassis that supports OEM private label and wholesale fleet programs.

Key Features and Benefits

  • Premium gold cabinet finish: a brand-led cabinet colour that may suit retail or hospitality projects where the cabinet is part of the design brief
  • Bottom-mounted compressor layout: leaves the cabinet top free for signage, dry goods, or brand panels
  • Cooler-zone suitability: aligns with the cooler ambient conditions where bottom-mount cabinetry typically operates
  • Glass door chilled merchandising: presents drinks and dairy, plus grab-and-go items in a customer-facing format
  • OEM finish and cabinet colour options: support private label programs for retail and hospitality brands

Where It Works Best

Brand-led retail or hospitality interiors may use a distinctive cabinet finish like this. Projects where cabinet colour is part of the design brief can request a finish sample before committing to a fleet order.

Because the gold finish is a brand-led specification, buyers usually want to see the finish in person before locking in a fleet order. The brand-led hospitality refrigeration lineup shows typical installation rooms. Our Zibo team can ship a finish sample alongside the spec sheet once you reach out via the contact page.

FAQ

A B2B buyer usually starts with a sketch of the end use — convenience store, supermarket, hotel kitchen, restaurant — and works backward into equipment. The questions below cover the spec decisions that drive model selection.

A standard 80-150 m² convenience store typically runs a 6-8 SKU refrigeration set:

  • Glass door merchandiser, plug-in 200-350L, for bottled beverages and dairy at the customer-facing wall
  • Upright multideck open chiller, 700-1500L, for produce, sandwiches, and grab-and-go meals
  • Undercounter refrigerator for back-of-house prep and overflow
  • Small freezer island for ice cream and frozen snacks
  • Slim grab-and-go cooler at the checkout for impulse SKUs

This combination covers roughly 90% of the cold-SKU mix in a Tier 1 or Tier 2 convenience format.

Four zones minimum cover a full supermarket lineup:

  • Chilled (2-8°C) for beverages, dairy, and produce — handled by multideck open chillers
  • Fresh (-2 to +2°C) for meat and seafood — handled by upright reach-ins and deli/meat display
  • Frozen (-18 to -22°C) for ice cream and frozen food — handled by island freezers
  • Ambient for non-refrigerated items (handled outside the refrigeration plan)

Cross-zone contamination and defrost cycle coordination are the spec traps to watch for.

Climate class is the ambient temperature the cabinet is designed to operate in without compressor overload:

  • Class 3 = 25°C ambient (temperate: most of Europe, northern US, Central Asia in winter)
  • Class 4 = 30°C ambient (Mediterranean, southern US, Middle East shoulder seasons)
  • Class 5 = 40°C ambient (tropical: Southeast Asia, Middle East summer, equatorial Africa)

For tropical destinations, Class 5 is essential for compressor longevity. Shipping a Class 3 cabinet to a 40°C ambient market cuts compressor life in half and voids most warranty claims. Buyers sourcing for SE Asia, the Gulf, or equatorial Africa should spec Class 5 from day one.

Both are food-safe, but they behave very differently in a working kitchen:

  • 304 stainless: 18% chromium + 8% nickel. The food-contact grade. Resists chlorinated cleaning chemicals and salt-heavy seafood prep without pitting. Non-magnetic.
  • 430 stainless: 16-18% chromium, no nickel. Cheaper and magnetic, but it pits in damp or salty environments over time.

For daily chlorinated wipe-downs or seafood prep, 304 is the correct spec.

Yes. We configure the compressor and electrical package at the factory based on the destination country's mains specification. A guest-room minibar can ship 110V/60Hz for North America and 220V/50Hz for Europe with no field rewiring. Larger commercial compressor units run 380V/3-phase with the appropriate breaker panel. This is a routine OEM/ODM configuration, not a custom surcharge.

Working on a multi-voltage rollout? Share your destination countries in the RFQ and we will pre-configure each SKU for the correct mains.
